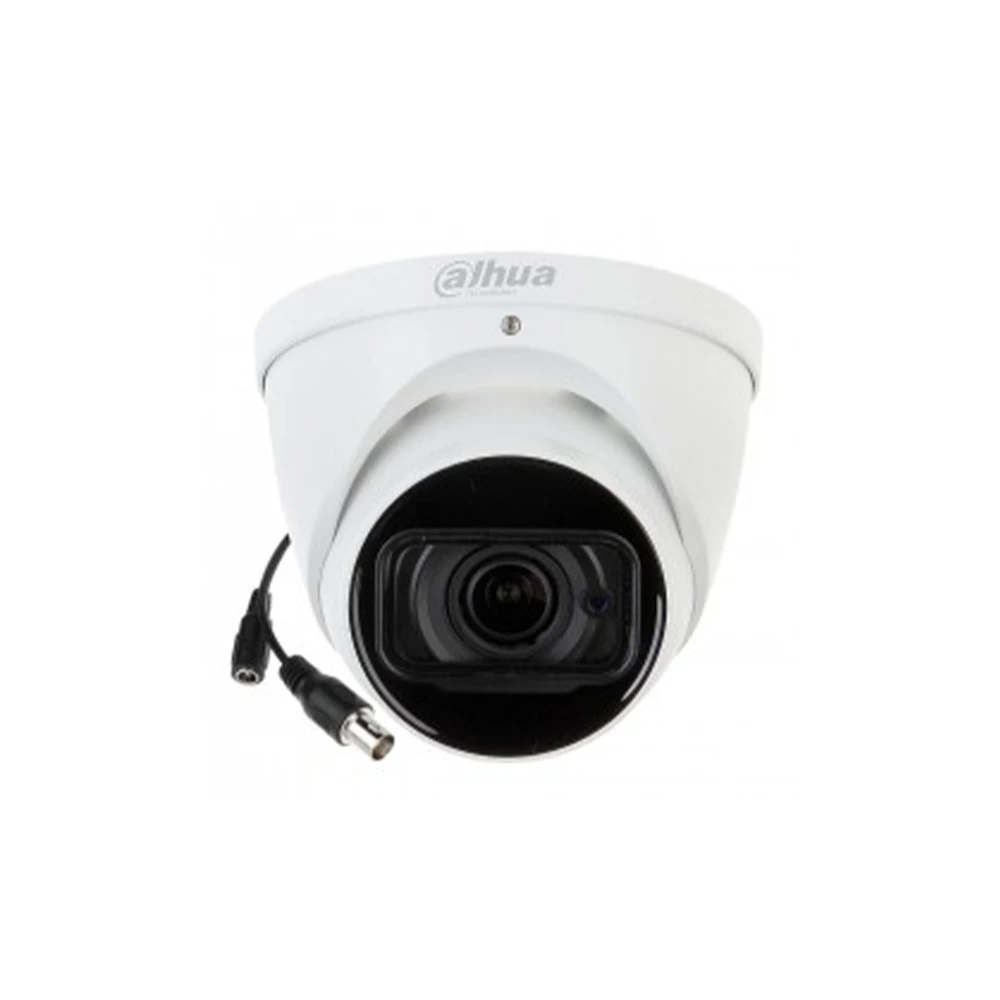

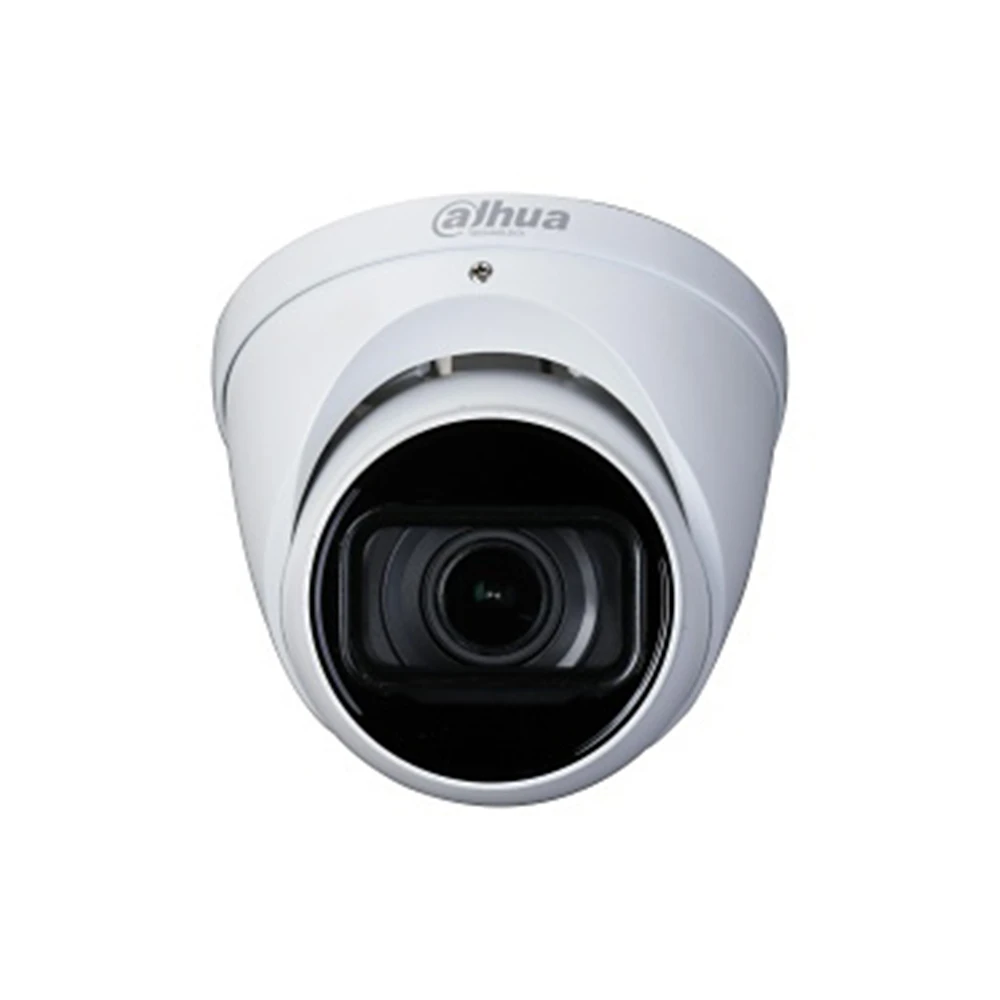

Dahua DH-HAC-HDW1200TP-Z-A 2MP HDCVI Motorized Vari-focal IR Eyeball Camera with Built-in Audio
Experience ultimate focal flexibility with a 2.7mm–12mm motorized zoom lens, long-range 60m Smart IR night vision, high-quality audio recording over coaxial cable, and heavy-duty IP67 protection.
The Dahua DH-HAC-HDW1200TP-Z-A is a premium 2MP (1080P) motorized vari-focal eyeball CCTV camera from Dahua's Lite Series. Equipped with a 2.7mm–12mm Motorized Zoom Lens, it allows you to remotely adjust the viewing angle and zoom level directly from your XVR, smartphone, or PC without needing manual lens adjustments. Featuring powerful 60 Meters Smart IR Night Vision, a Built-in High-Sensitivity Microphone for coaxial audio transmission, and a rugged all-metal IP67 weatherproof housing, this camera is ideal for long driveways, broad store layouts, gate monitoring, and large commercial spaces.
Key Features
2.7mm–12mm Motorized Zoom Lens: Remotely control zoom and focus levels to switch effortlessly between wide-angle perimeter monitoring and focused long-distance coverage.
Full HD 1080P Resolution: Sharp 2MP CMOS sensor captures detailed 1080P video ($1920 \times 1080$) at 30fps over standard coaxial cabling.
60m Long-Range Smart IR: Powerful integrated IR LEDs provide clear monochrome night vision reaching up to 60 meters (197 ft) in complete darkness.
Broadcast-Quality Built-in Mic: Integrated microphone transmits clear, real-time audio over coaxial cable without requiring extra audio cables (supported on compatible Dahua XVRs).
4-in-1 Multi-Format Signal: Switchable HDCVI, TVI, AHD, and CVBS analog video outputs via a single BNC connection for universal DVR compatibility.
Heavy-Duty IP67 All-Metal Casing: Rugged metal construction designed to withstand extreme Sri Lankan weather conditions, heavy rain, and dust.
Smart IR Technology: Automatically adjusts IR LED intensity to prevent overexposure when subjects move closer to the lens.
Technical Specifications
| Feature | Specification |
| Brand | Dahua |
| Model | DH-HAC-HDW1200TP-Z-A |
| Series | Lite Series (Motorized Vari-focal) |
| Camera Type | Outdoor/Indoor Motorized Zoom Eyeball Camera |
| Resolution | 2MP Full HD ($1920 \times 1080$) |
| Lens Type | 2.7mm–12mm Motorized Vari-focal Lens |
| Angle of View | Horizontal: $101.5^\circ \sim 28.4^\circ$ |
| Audio Interface | Built-in High-Sensitivity Microphone |
| Night Vision Range | Up to 60m (197 ft) Smart IR |
| Video Output | Switchable CVI / TVI / AHD / CVBS |
| Minimum Illumination | 0.02 Lux/F1.8 (0 Lux with IR on) |
| Casing Material | Heavy-Duty All-Metal Casing |
| Weatherproof Rating | IP67 Heavy-Duty Weather-Resistant |
| Power Supply | 12V DC $\pm 30\%$ |
| Power Consumption | Max 8.2W (12V DC, IR and Zoom active) |
What's in the Box?

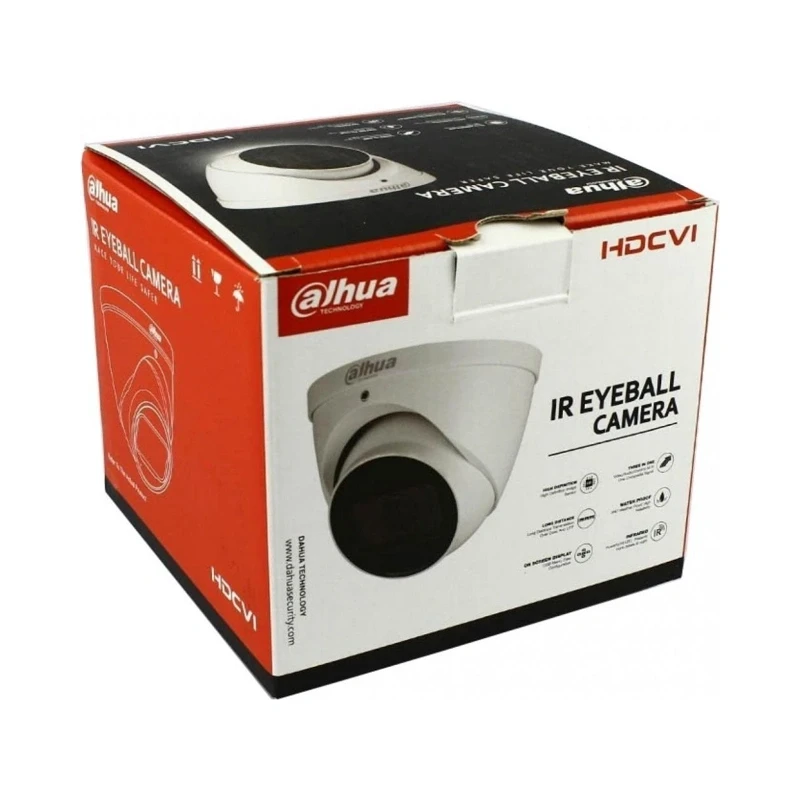

1 × Dahua DH-HAC-HDW1200TP-Z-A 2MP Motorized Zoom Eyeball Camera
1 × Mounting Screws & Wall Plugs Pack
1 × Mounting Alignment Template
1 × Quick Setup Guide
Warranty & Genuine Support
